Description

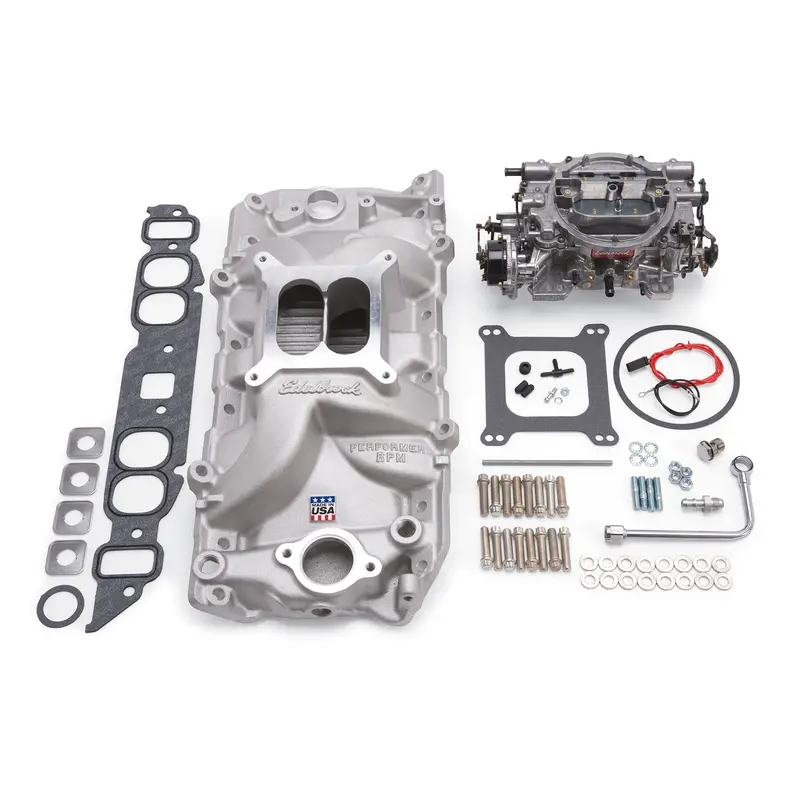

The Edelbrock #2062 Single-Quad Manifold and carb kit is designed for Big-Block Chevy Oval Port applications. With a Manifold and Carb Kit, it’s easy to upgrade your induction system with the best combination of Edelbrock proven performance and looks in a single box. These kits include: an Edelbrock manifold, Performer or Thunder Series AVS carb, chrome fuel inlet, intake gasket set, intake bolt set and carb stud kit. The manifold and carbs are available with a standard satin finish or with our bright EnduraShine chrome-like finish for long lasting show quality looks.
Specifications:
| Base Plate Gasket Mount Hole Quantity | 8 |
| Base Plate Gasket Thickness | 0.048 |
| Base Plate Material | Aluminum |
| Carburetor Type | AVS2 Series 800 cfm |
| Cylinder Head Type | Oval Port- Large |
| Description_ABR | INTK CARB KT |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF | Engine Intake Manifold / Carburetor Kit |
| Description_DES | INDUCTION KIT |
| Description_EXT | Edelbrock Single-Quad Manifold and carb kit for Big-Block Chevy Oval Port. With a Manifold and Carb Kit, it’s easy to upgrade your induction system with the best combination of Edelbrock proven performance and looks in a single box. |
| Description_EXT | Edelbrock Single-Quad Manifold and carb kit for Big-Block Chevy Oval Port. With a Manifold and Carb Kit; it s easy to upgrade your induction system with the best combination of Edelbrock proven performance and looks in a single box. |
| Description_FAB | All Necessary Hardware Included |
| Description_FAB | Chrome Fuel Inlet |
| Description_FAB | EnduraShine Finish |
| Description_FAB | High-Quality Edelbrock Intake Gasket Set |
| Description_FAB | Includes Gasgacinch Gasket Sealer |
| Description_FAB | Resists Discoloration From Heat |
| Description_FAB | Suits Engines Air And Fuel Requirements |
| Description_FAB | Varying Manifold And Carburetor Combinations |
| Description_INV | Single-Quad Manifold and carb kit |
| Description_KEY | Edelbrock; Intake manifold; Carburetor; Thunder Series; AVS; carb gasket; Bolt Kit; Carb Studs; Throttle linkage; Fuel Line; Fuel; Gas; Induction kit; all in one box; 2062; Single-Quad Manifold; Big-Block; Chevy; Oval Port |
| Description_LAB | Single-Quad Manifold and carb Kit for Big-Block Chevy Oval Port |
| Description_MKT | The Edelbrock #2062 Single-Quad Manifold and carb kit is designed for Big-Block Chevy Oval Port applications. With a Manifold and Carb Kit, it’s easy to upgrade your induction system with the best combination of Edelbrock proven performance and looks in a single box. These kits include: an Edelbrock manifold, Performer or Thunder Series AVS carb, chrome fuel inlet, intake gasket set, intake bolt set and carb stud kit. The manifold and carbs are available with a standard satin finish or with our bright EnduraShine chrome-like finish for long lasting show quality looks. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 7in.} |
| Description_TRA | Comes with a Performer RPM manifold & Thunder Series AVS 800 cfm carb (oval port) |
| Description_TRA | • Satin Finish • Comes with a Performer RPM manifold Thunder Series AVS 800 cfm carb (oval port) |
| Engine Make/Size | Chevy Big Block (396-502) |
| Family | Performer RPM |
| finish | Satin |
| height | 14.8 |
| Intake Manifold Type | Performer RPM |
| length | 26.12 |
| LTL | N |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Performer RPM |
| Single Or Dual Plane Type | Single |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 34.2 |
| width | 14.37 |
